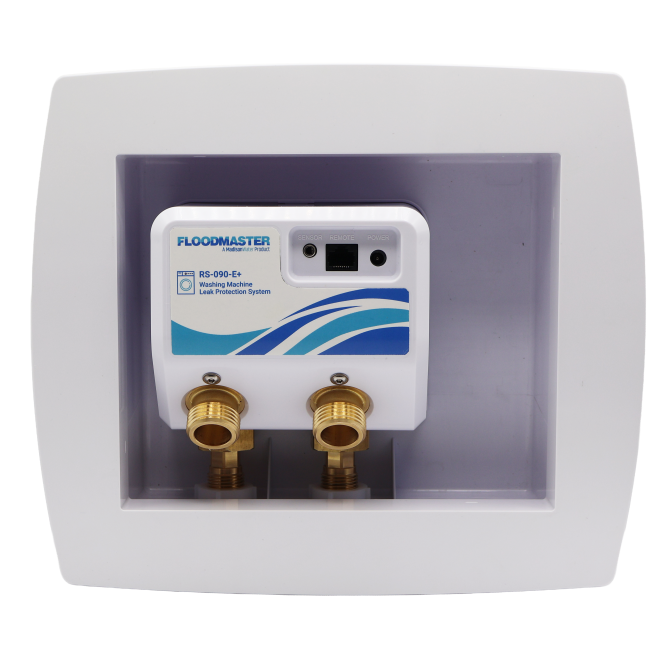

RS-090-E+ Washing Machine Leak Detection and Automatic Shut-Off Outlet Box System

The RS-090-E+ is suitable for installation on new construction, facility upgrades, tenant build-outs and retrofit projects. Care should be taken to ensure necessary rough opening space for outlet box (7.75” X 9” X 3.75”), along with hot and cold feed line positioning/spacing (2.52” on center). Also requires 120V AC power outlet within 6’ of the leak detection receiver. It includes these commercial-grade components:

2 – 3/4" leak prevention valve units for hot and cold water shut off

1 – Control/alarm box

1 – Magnetized water sensor disc with 8' lead wire

1 – Metal plate for sensor placement

1 – 120V AC power plug with 12' lead wire

1 – Valve assembly with control box and water hammer arrestors

1 – Outlet box

1 – Trim plate

1 – User control module

1 – Water sensor

1 – Power transformer

1 – Metal plate for sensor placement

4 – Mounting strips
